Butt Connector

Butt Connector

Category:

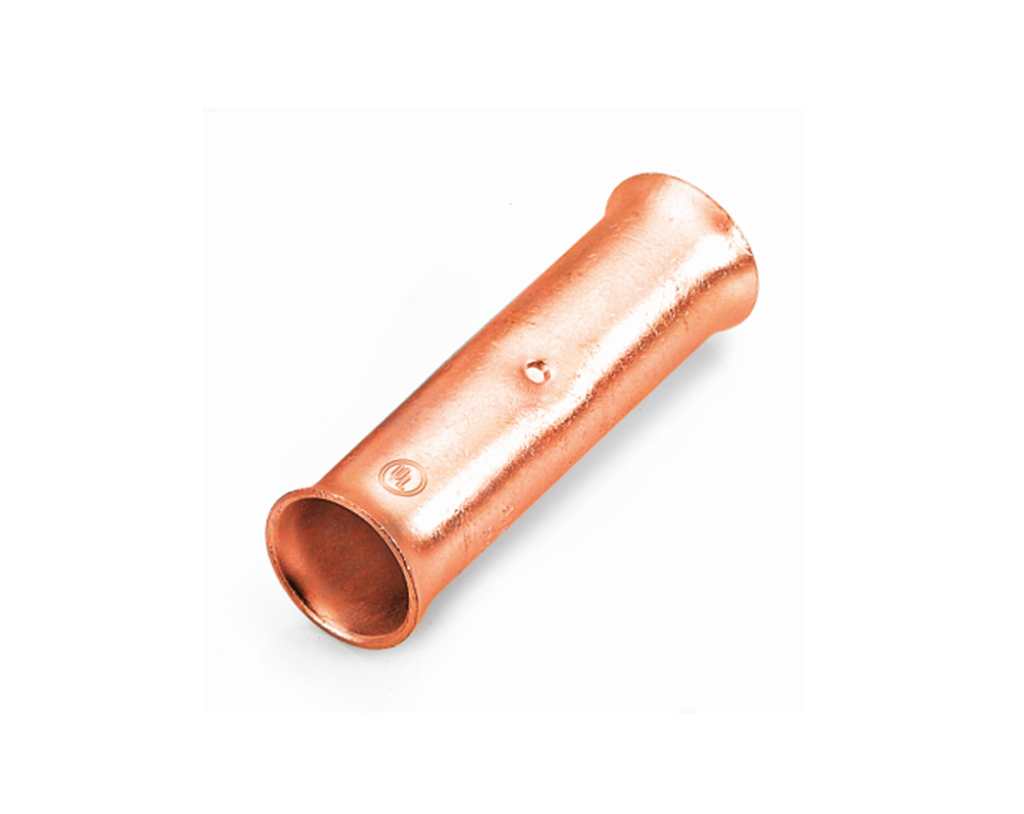

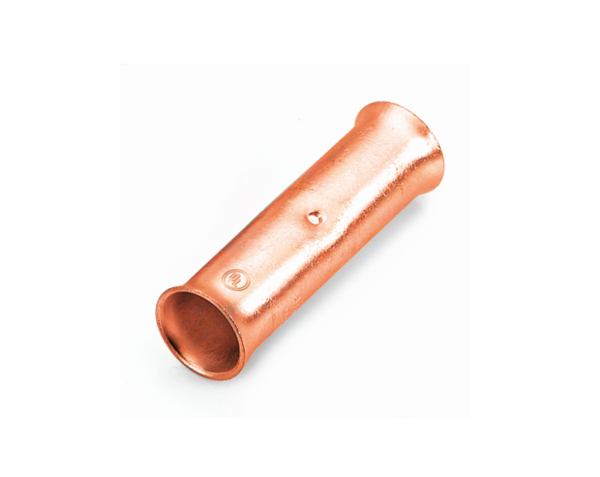

Non-Insulated Butt Connectors are terminals that are used to mate, connect, or terminate a single wire.

Best suited when special performance or installation characteristics are not needed Non-insulated butt connectors popular terminals used in applications that utilizes wire to transfer electrical current Can be crimped anywhere on the barrel surface.

Description

SelectQty Wire Size Dimensions in mm Product Code
F OD L F
8 4.72 6.35 27.94 2.54 VBC – T8
6 5.89 7.92 29.21 2.54 VBC – T6
4 7.14 9.04 30.99 2.54 VBC – T3
2 8.43 10.67 34.04 2.54 VBC – T2
1 8.94 11.18 34.04 2.54 VBC – T1
1/0 10.19 12.65 39.62 2.54 VBC – T11
2/0 11.58 14.22 45.97 2.54 VBC – T12
3/0 12.93 15.62 48.26 2.54 VBC – T13
4/0 14.94 17.63 62.48 2.54 VBC – T14

Standards:
UL 486A-4868
