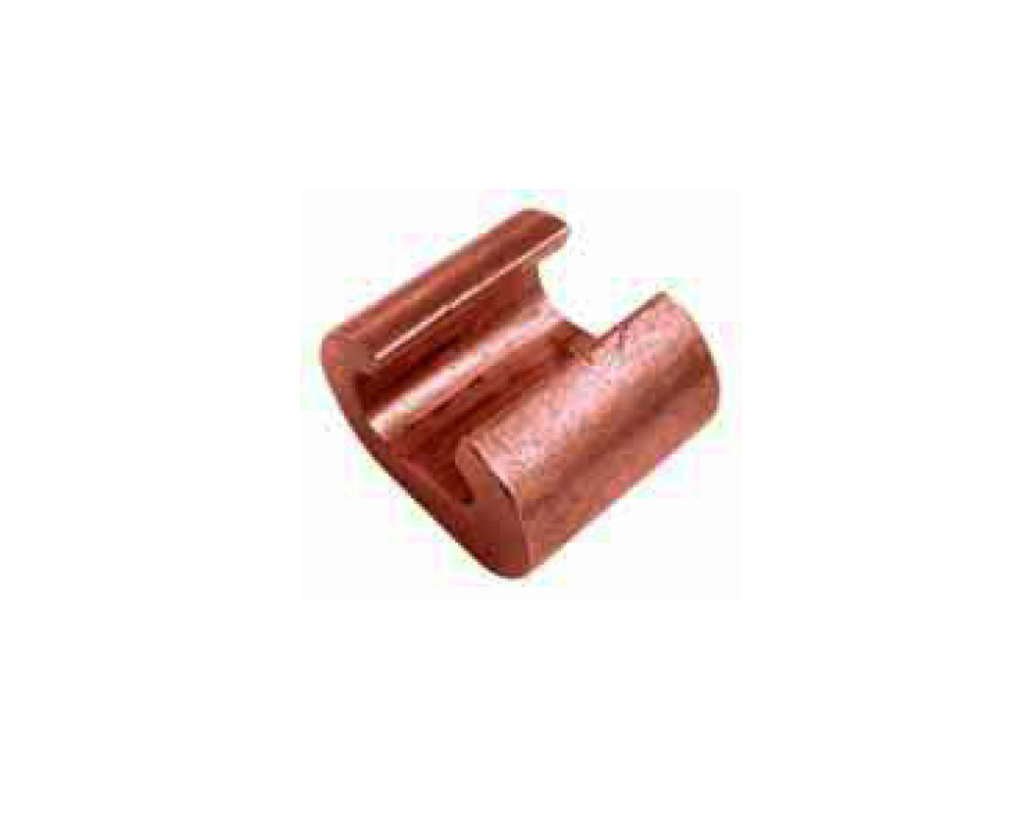

Copper Compression Type “C” Crimp Connectors

Copper Compression Type “C” Crimp Connectors

Category:
These “C” Crimp Connectors are used for tap and Parallel connection of stranded copper cable in earthing application and are ideal for making permanent joints where periodic disconnection is not required

Description

SelectQty Cable Size Dimension in mm Per Box Part No.
mm² A B L
25 – 25 20.6 12 21 10 VCC025
35 – 35 26.4 15.4 21 10 VCC035
50 – 50 34 21.2 28 10 VCC050
70 – 70 31 19.8 28 10 VCC070
95 – 95 40 25.5 29 10 VCC095
120 – 120 44 27 31 10 VCC120
150 – 150 44.5 29.7 35 10 VCC150
185 – 185 51.8 30 35 10 VCC185
240 – 240 57.7 33.6 35 10 VCC240
16-35 / 50-70 33.4 21 23 10 VCC1635
25-50 / 70-95 40.8 26 28 10 VCC2550
