Hot Line Clamps - Aluminum

Hot Line Clamps – Aluminum

Category:

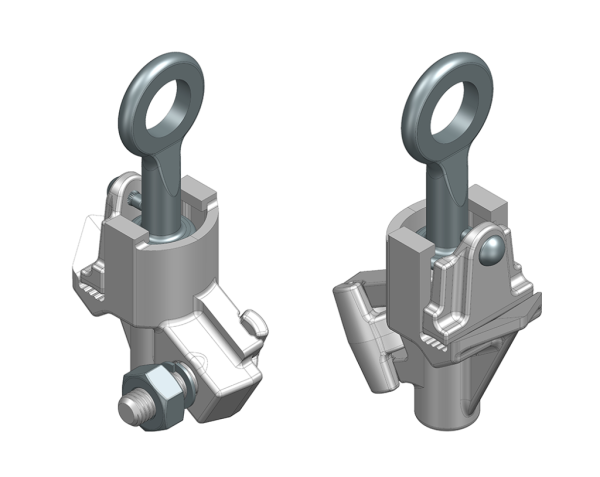

Hot Line Clamps are designed for installing or removing distribution tap connections with standard hot line tools and equipment. Aluminum alloy castings offer high strength and corrosion resistance. Extended jaw for greater conductor contact.

Description

SelectQty Description Conductor Range Dimensions Information Weight/Case Per Box Part No.
Main Tap A B C
Aluminum Hot Line Clamp #8-2/0 #8 Solid – 2/0 Stranded
.125″ – .414″		 #8 Solid – 2/0 Stranded
.125″ – .414″		 4-5/16″ 1-1/4″ 2-1/2″ —- 25 VHLA20
Aluminum Hot Line Clamp #6-400MCM #6 Solid – 397.5
.162″ – .745″		 #6 Solid – 3/0 Stranded
.162″ – .547″		 6-3/16″ 1-3/4″ 2-1/2″ —- 25 VHLA30
Aluminum Hot Line Clamp #6-400MCM – Heavy Hex Nut #6 Solid – 397.5
.162″ – .745″		 #6 Solid – 3/0 Stranded
.162″ – .547″		 6-3/16″ 1-3/4″ 2-1/2″ —- 25 VHLA40
Aluminum Hot Line Clamp 4/0-800 #4/0 – 800 MCM
.502″ – 1.031″		 #8 Solid – 2/0 Stranded
.198″ – .703″		 6-5/8″ 2″ 2-13/16″ —- 25 VHLA60
