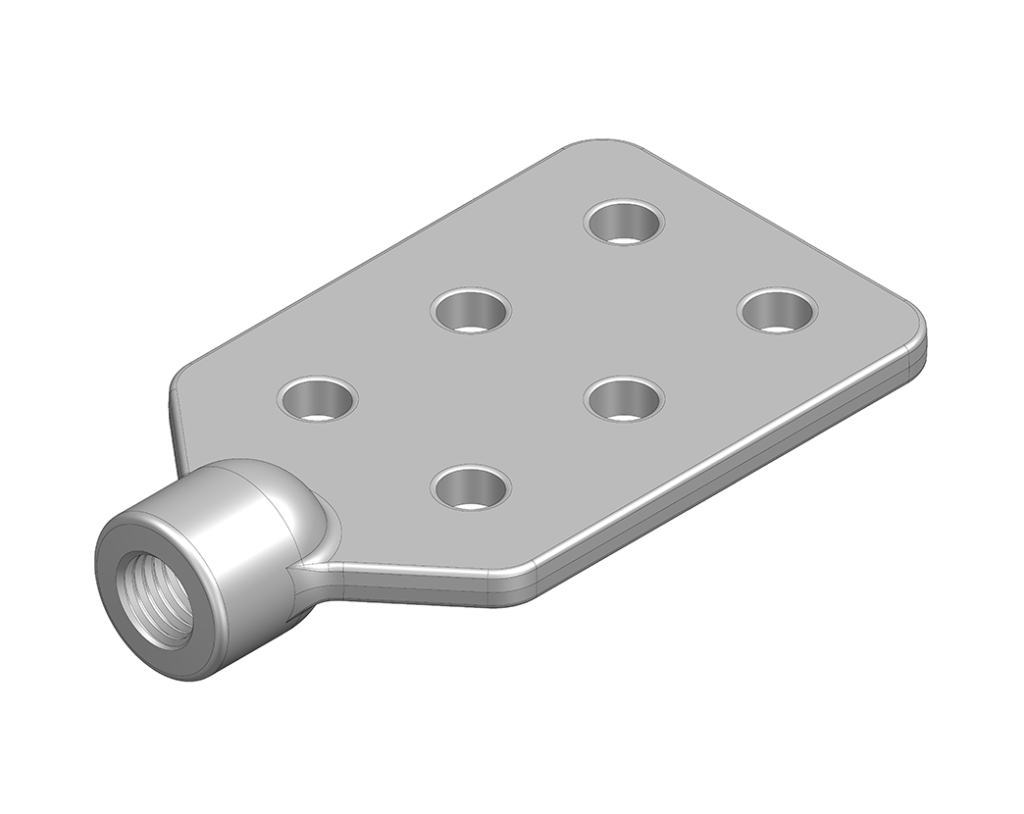

Spade Terminal TIN Plated

Spade Terminal TIN Plated

Category:
Secured by jam nut to bushing stud.
  • Recommended when copper terminals are connected (Use “AXS” style for aluminum terminals.)
  • Terminal lug mounting holes are 9/16″ diameter with 1-3/4″ NEMA spacing.

Jam nuts are usually supplied by the transformer manufacturer and are not furnished unless specified.

Description

SelectQty X’FORMER STUD SIZE DIMENSIONS INCHES (MM) APPROX. WT. 100 LBS. (KG) Per Box Part No.
LENGTH WIDTH HEIGHT
5/8″-11 5.12 (130) 1.37 (35) 0.31 (8) 70 (32) —- VTS01
1″-14 5.06 (129) 1.93 (49) 0.34 (9) 142 (64) —- VTS02
5/8″-11 8.50 (216) 1.37 (35) 0.31 (8) 120 (54) —- VTS03
1″-14 8.56 (218) 1.93 (49) 0.34 (9) 215 (98) —- VTS04
5/8″-11 8.50 (216) 1.37 (35) 0.31 (8) 36 (16) —- VTS05
1″-14 8.56 (218) 2.00 (50) 0.34 (9) 65 (29) —- VTS06
5/8″-11 5.37 (136) 3.50 (89) 0.25 (6) 132 (60) —- VTS07
1″-14 5.87 (149) 3.50 (89) 0.37 (9) 260 (118) —- VTS08
5/8″-11 5.37 (136) 3.50 (89) 0.25 (6) 39 (18) —- VTS09
5/8″-11 6.62 (168) 3.50 (89) 0.37 (9) 256 (116) —- VTS10
1″-14 7.00 (178) 3.50 (89) 0.37 (9) 315 (143) —- VTS11
1″-14 7.00 (178) 3.50 (89) 0.37 (9) 94 (43) —- VTS12
5/8″-11 8.37 (213) 3.50 (89) 0.37 (9) 330 (150) —- VTS13
1″-14 8.75 (222) 3.50 (89) 0.37 (9) 362 (164) —- VTS14
1-1/4″-12 7.12 (181) 3.50 (89) 0.37 (9) 345 (156) —- VTS15
1-1/4″-12 9.12 (232) 3.50 (89) 0.37 (9) 445 (202) —- VTS16
1-1/4″-12 14.00 (356) 4.00 (102) 0.50 (13) 970 (440) —- VTS17
1-1/4″-12 17.50 (445) 4.00 (102) 0.50 (13) 1300 (590) —- VTS18
